Strength Through Stretch pet strapping band extrusion line High Performance

Strength Through Stretch pet strapping band extrusion line High Performance
Strength Through Stretch pet strapping band extrusion line High Performance

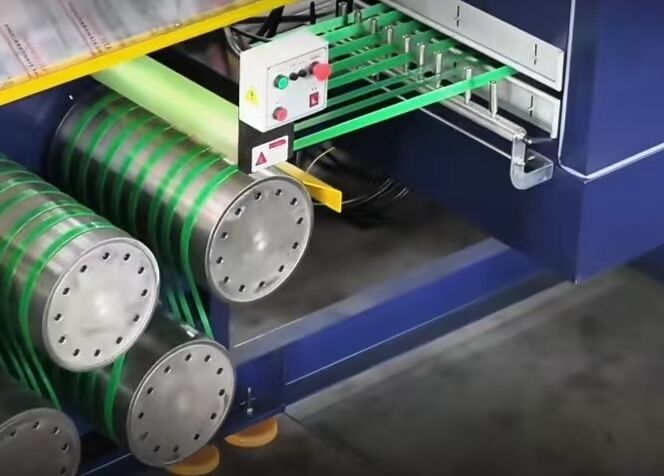

Gambar besar :  Strength Through Stretch pet strapping band extrusion line High Performance

Detail produk: Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1Set
Kemasan rincian: Kotak Kayu
Waktu pengiriman: 60 hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 100 set
Kontak

Strength Through Stretch pet strapping band extrusion line High Performance

Deskripsi
Filsafat Desain: Direkayasa untuk Proses Ketegangan Tinggi Struktur Rangka: Balok Kotak Tugas Berat
Standar Rol: Kekakuan Tinggi + Keseimbangan Dinamis Kekerasan Permukaan: ≥HRC 62
Inti Penggerak: Sistem Servo Berkekuatan Tinggi Presisi bantalan: Kelas P5
Menyoroti:

pet strapping band extrusion line

,

high performance PET stretch line

,

engineered PET strap manufacturing system

Strength Through Stretch: The PET Line Engineered for Performance
Engineered Stretching Technology
Our PET production line is engineered around the core principle of high-tension, high-precision stretching. Every component—from the reinforced frame foundation to precision-balanced stretch rollers, high-torque servo drive systems, and wear-resistant surface treatments—is designed to withstand continuous high-load operations. This engineering ensures deformation-free, vibration-free performance that reliably produces high-quality PET products.
Key Specifications
  • Structural Engineering: High-rigidity box-beam frame optimized through finite element analysis to prevent deformation under long-term high-tension loads
  • Core Components: Alloy steel stretch rollers with quenching, tempering, grinding, and hard chrome plating for surface hardness above HRC 60
  • Drive System: High-power servo motors with precision gear reducers delivering smooth, responsive torque
  • Bearings & Guides: High-precision P5 grade bearings and wear-resistant tenter frame rails
  • Thermal Management: Internal hot oil circulation system maintaining roller surface temperature uniformity within ±1°C
Technical Parameters
Parameter Category Parameter Item Specification / Description
Mechanical Structure Frame Design Heavy-Duty Box Beam, FEA Optimized
Mechanical Structure Main Material Q235B / Q345B Structural Steel
Stretch Rollers Roller Material 42CrMo Alloy Steel
Stretch Rollers Surface Treatment Hard Chrome Plated, Hardness ≥ HRC 62
Stretch Rollers Dynamic Balance Grade G2.5 or Higher
Stretch Rollers Roller Surface Temperature Uniformity ±1.0 °C (heated rolls)
Drive System Main Stretch Roller Drive Servo Motor + Precision Planetary Reducer
Drive System Bearing Precision P5 Grade or Above High-Precision Bearings
Design Metrics Max Designed Line Tension Up to 5000N+ (Depending on line speed & product spec)
Design Metrics Design Life Key structural components > 15 years
Frequently Asked Questions
What is the practical value for customers of the heavy mechanical structure and high-precision components?
The value manifests in long-term stability, low maintenance costs, and superior product quality. A robust structure resists vibration and prevents process parameter drift caused by micro-deformation. High-precision rollers and bearings ensure smooth operation, reduce wear, extend equipment overhaul intervals, and directly contribute to product thickness uniformity and surface quality. This represents an investment focused on total cost of ownership over the equipment lifecycle.
What are the advantages of using servo motors to drive stretch rollers compared to ordinary motors with VFDs?
Servo motors offer significant advantages in stretching applications: High Control Precision enables extremely accurate speed and position control, ensuring absolute accuracy of draw ratios. Extremely Fast Response provides millisecond-level reaction to tension changes, complementing closed-loop tension control systems. Strong Overload Capacity withstands short-term overloads several times the rated value, handling instantaneous production shocks. High Efficiency and Low Heat Generation ensure top-tier performance and reliability throughout the stretching process.

Label:

PET strap drying and winding system,

integrated PET strap production line,

PET strap manufacturing equipment with warranty
