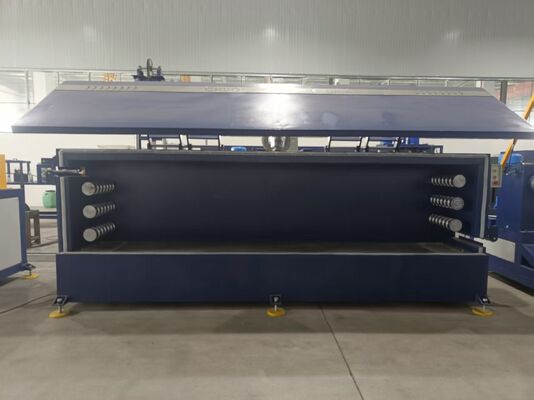

2-Stage Water Removal PP Band Extrusion Line

2-Stage Water Removal PP Band Extrusion Line
2-Stage Water Removal PP Band Extrusion Line

Gambar besar :  2-Stage Water Removal PP Band Extrusion Line

Detail produk:
Tempat asal: Cina
Nama merek: CHUQI
Nomor model: CQ-SPP120-6
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: USD/RMB
Kemasan rincian: kotak kayu
Waktu pengiriman: 60 HARI
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10 set
Kontak

2-Stage Water Removal PP Band Extrusion Line

Deskripsi
Tahapan pembuangan air: Dua Kekuatan tahap pertama: 4kw
Kekuatan tahap kedua: 7.5kw Unit tahap pertama: 4 set hisap
Unit tahap kedua: 4 unit pembuangan air Prinsip Kerja: Aliran udara bertekanan tinggi
Pemeliharaan: Sudut/aliran yang dapat disesuaikan Kompatibilitas Kecepatan: Siap berkecepatan tinggi
Menyoroti:

2-stage PP band extrusion line

,

water removal PP strapping production line

,

PP strapping band extrusion machine

2-Stage Water Removal PP Band Extrusion Line
Residual moisture on the tape surface, if carried into subsequent embossing or winding processes, can cause unclear embossing, roll adhesion, or mildew. This production line features a two-stage water removal system. The first water removal device, located after the first cooling tank, uses 4 suction pipe sets and a 4KW high-pressure centrifugal fan to initially remove bulk water. The second water removal device at the outlet of the secondary cooling tank has 4 water removal units and a 7.5KW high-pressure centrifugal fan for efficient fine drying. The two stages work together to ensure the tape entering the embosser and winder is completely dry, providing ideal conditions for downstream processes.
Technical Specifications
Parameter First Water Removal Second Water Removal
Number of units 4 suction pipe sets 4 water removal units
Fan power 4 KW 7.5 KW
Fan type High-pressure centrifugal High-pressure centrifugal
Installation position After first cooling tank Outlet of secondary cooling tank
Target 6 PP strands 6 PP strands
Key Features
  • Two-stage removal: First rough removal, second fine drying - thorough
  • First stage 4KW: High-volume suction, quickly removes bulk water
  • Second stage 7.5KW: High-pressure strong blow,徹底 removes residual film
  • 4 independent units: Each对应 one strand, no interference
  • Efficient drying: Visually dry surface with no water droplets
  • Improved embossing: Dry surface ensures clear, consistent patterns
  • Better winding: Prevents moisture-related adhesion and mildew
  • High-speed compatible: Effective even at high line speeds
  • Energy-saving: Fans operate intermittently or speed-adjusted
  • Easy maintenance: Adjustable air knife angle and flow
Frequently Asked Questions
Why are two stages of water removal needed? Isn't one enough?
After the first tank, a large amount of water adheres to the tape surface; one stage can remove about 80%. However, the remaining water film still needs strong blowing. The second stage uses a more powerful fan to ensure complete dryness, especially adapting to reduced water splash at high speeds.
Will the airflow from the water removal units blow the tape off course?
The design uses a fan-shaped airflow with adjustable angle, directed tangentially to the tape surface, primarily generating shear force to peel off the water film, with minimal impact on the tape's running path. Proper adjustment prevents wandering.
Are the fans noisy?
High-pressure centrifugal fans do generate some noise, but the equipment includes noise reduction measures and protective covers. For noise-sensitive environments, optional additional sound enclosures or remote fan installation can be provided.
