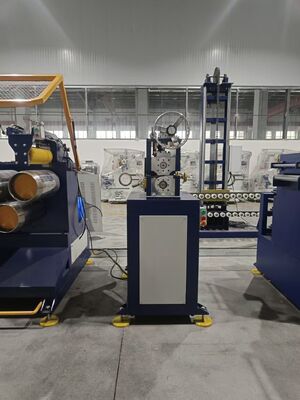

Adjustable Draw Ratio 1.5-12 High-Strength PP Strapping Production Line with Precision Temperature Control

Adjustable Draw Ratio 1.5-12 High-Strength PP Strapping Production Line with Precision Temperature Control
Adjustable Draw Ratio 1.5-12 High-Strength PP Strapping Production Line with Precision Temperature Control

Gambar besar :  Adjustable Draw Ratio 1.5-12 High-Strength PP Strapping Production Line with Precision Temperature Control

Detail produk:
Tempat asal: Cina
Nama merek: CHUQI
Nomor model: CQ-SPP120-6
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1SET
Kemasan rincian: KOTAK KAYU
Waktu pengiriman: 60 HARI
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 10 set
Kontak

Adjustable Draw Ratio 1.5-12 High-Strength PP Strapping Production Line with Precision Temperature Control

Deskripsi
Rasio Draw: 1,5-12 dapat disesuaikan Panjang Kotak Ekstensi: 6,5m
Kekerasan roller: HRC60 Kekuatan Pemanasan: 41.6KW
Suhu Cetakan. Pengendali: 6kw Isolasi: 100mm
Fitur produk: Kekuatan tinggi dapat disesuaikan

Adjustable Draw Ratio from 1.5 to 12 for High-Strength PP Strapping
Product Introduction

Stretching orientation is the core process for imparting high strength to PP strapping. The pressure extension unit and extension box of this production line provide a wide draw ratio adjustment range from 1.5 to 12 times.

By precisely controlling the speed ratio between the extension rollers and haul-off rollers, PP molecular chains are highly oriented along the stretching direction, increasing the longitudinal tensile strength of the product several times over its unoriented state.

Users can flexibly select the optimal draw ratio according to the final application (light bundling, heavy-duty packaging), achieving flexible production from standard to ultra-high strength strapping to meet diverse customer requirements.

Main Specifications
  • Draw Ratio Range: 1.5 - 12 : 1 (continuously adjustable)
  • Extension Box Length: 4m + 2.5m (total 6.5m)
  • Extension Roller Diameter: φ200mm, surface hardness HRC60
  • Pressure Extension Roller: φ156mm, face width 500mm
  • Pressure Extension Motor: 7.5KW
  • Extension Box Heating Power: 41.6KW
  • Mold Temperature Controller Power: 6KW
  • Temperature Range: 50-250℃
  • Insulation Thickness: 100mm
Technical Parameters
Item Parameter
Draw Ratio Range 1.5 - 12 times
Total Extension Box Length 6.5 m (4m+2.5m)
Extension Roller Diameter φ200mm
Extension Roller Hardness HRC60
Pressure Extension Roller Dia. φ156mm
Pressure Extension Motor 7.5KW
Extension Box Heating Power 41.6KW
Mold Temp. Controller Power 6KW
Working Temperature 50-250℃
Insulation Thickness 100mm
Customer Questions & Answers
Is a higher draw ratio always better? How to choose the optimal value?
Not necessarily. Higher draw ratio increases strength and stiffness but reduces elongation at break (making it more brittle). The choice requires balance: high draw ratios (8-12x) for heavy-duty packaging, moderate draw ratios (4-7x) for applications needing flexibility. We provide performance data at different draw ratios for reference.
Why does the extension box need a mold temperature controller?
The rollers inside the extension box need precise temperature control to keep the PP tape in the proper rubbery state during stretching. The mold temperature controller circulates hot oil or water to provide stable, uniform roller surface temperature, avoiding localized overheating or cooling that could cause uneven stretching or tape breakage.
What is the purpose of the 100mm insulation?
It significantly reduces heat loss, lowering energy consumption. It also keeps the internal temperature more stable, reducing frequent on/off cycling of the temperature control system and extending the life of heating elements.
